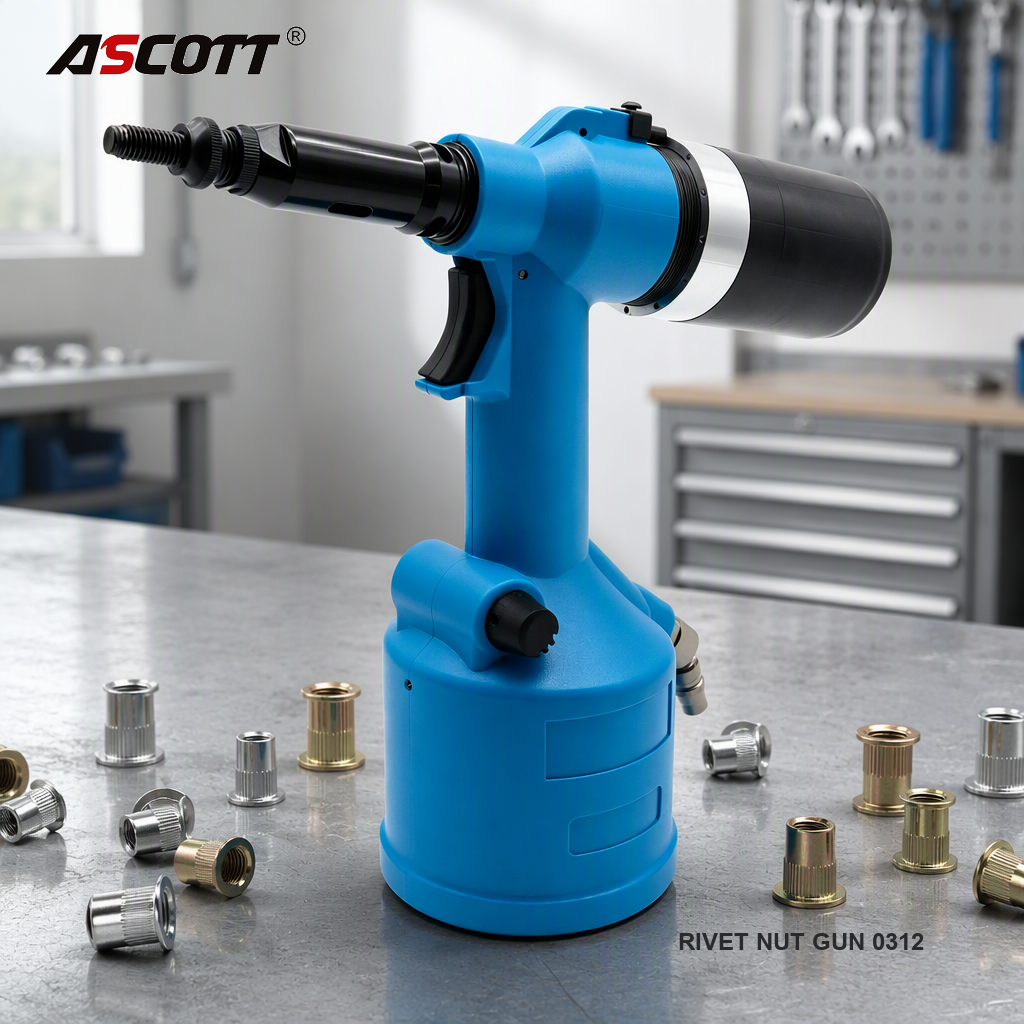

ASCOTT 0312 Pneumatic Rivet Nut Gun for Installing Rivet Nuts on Thin Sheets for Metal Reinforcement Pneumatic Tool

0312 Pneumatic Rivet Nut Gun: This pneumatic nut pull gun uses a combination of air pressure and hydraulic boost to pull rivet nuts. With the push of a button, it can set the nut, pull it, and automatically retract the screw. It's used for installing rivet nuts on thin sheets, creating strong internal threads on the thin material

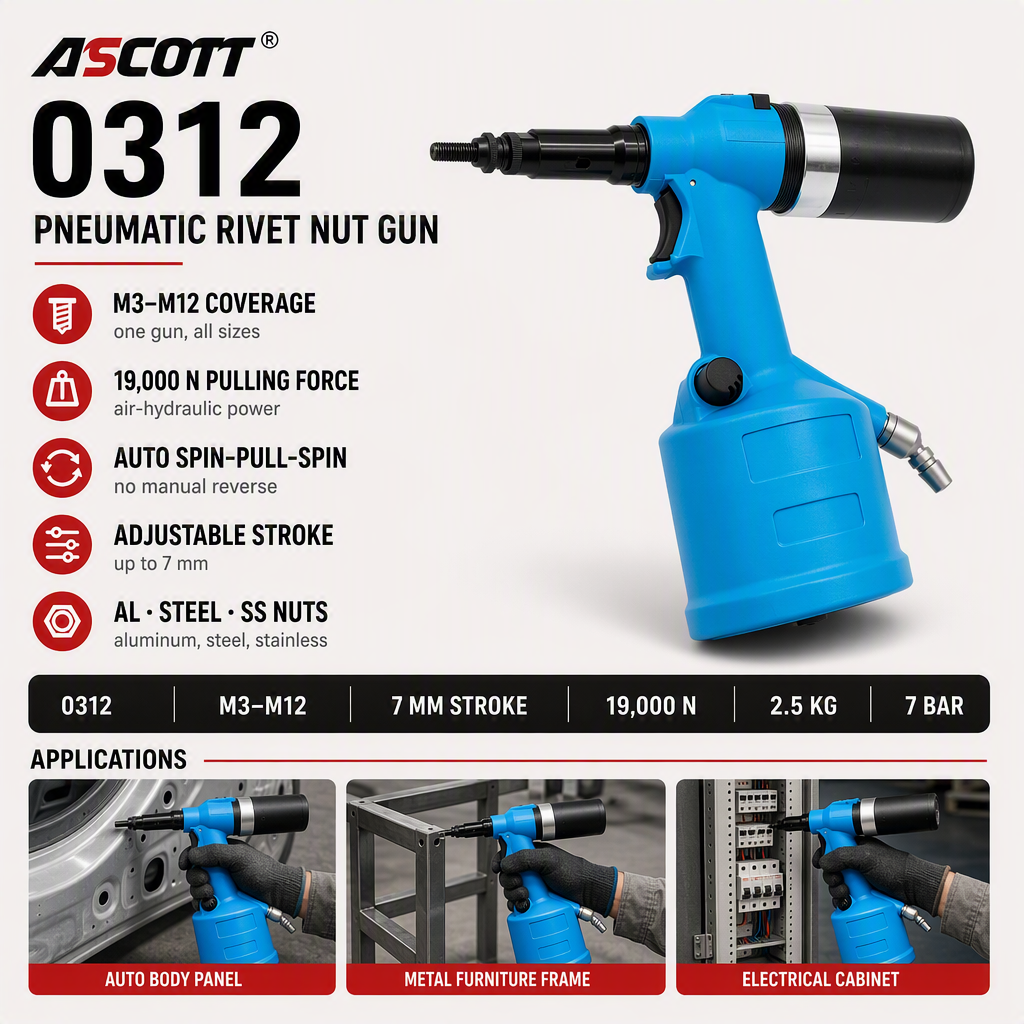

Product Details:

1. Suitable rivet nut sizes: M3-M12 (works with aluminum, steel, and stainless steel rivet nuts)

2. Maximum tensile force: 19,000 N

3. Maximum stroke: 7mm, adjustable stroke

4. Working air pressure: 7 Bar

5. Net weight: 2.5 KG

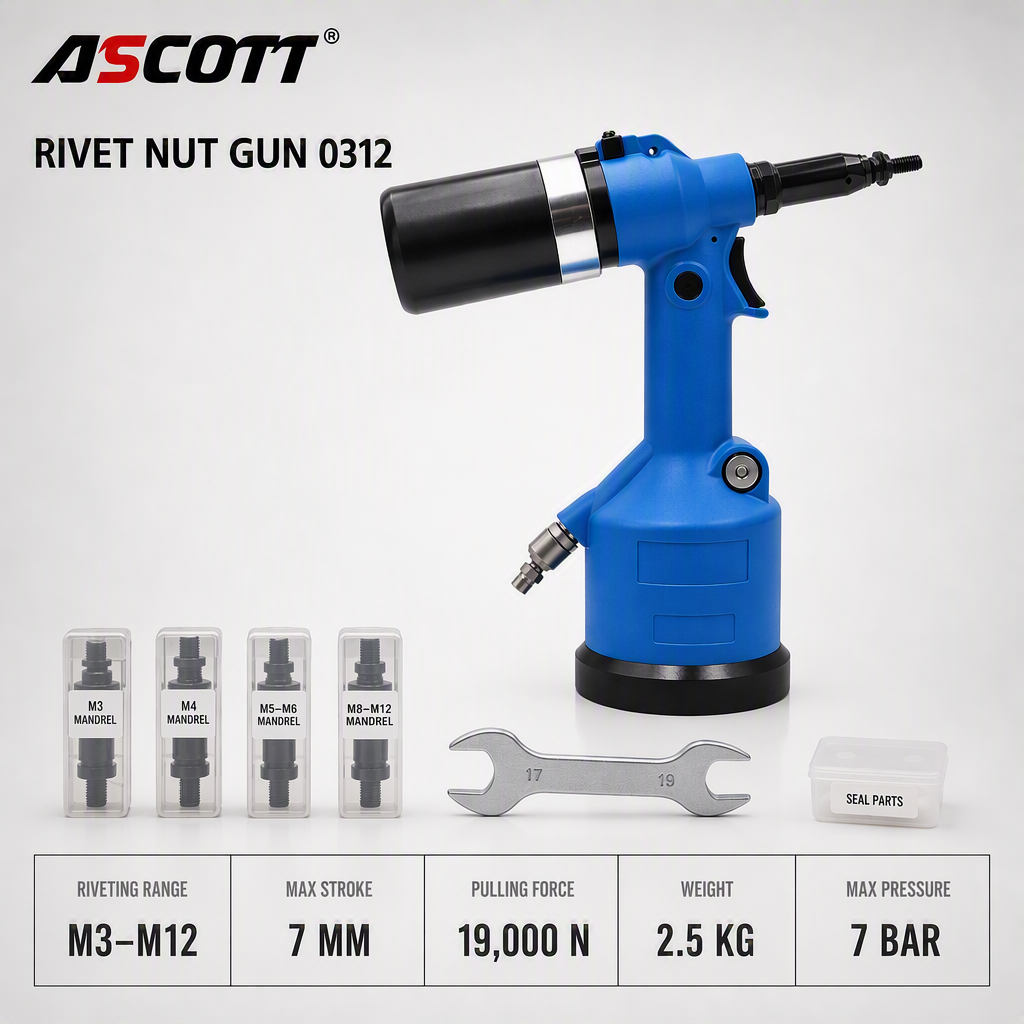

6. Standard accessories: M3/M4/M5-M6/M8-M12 screws (mandrels), wrench, sealing maintenance parts

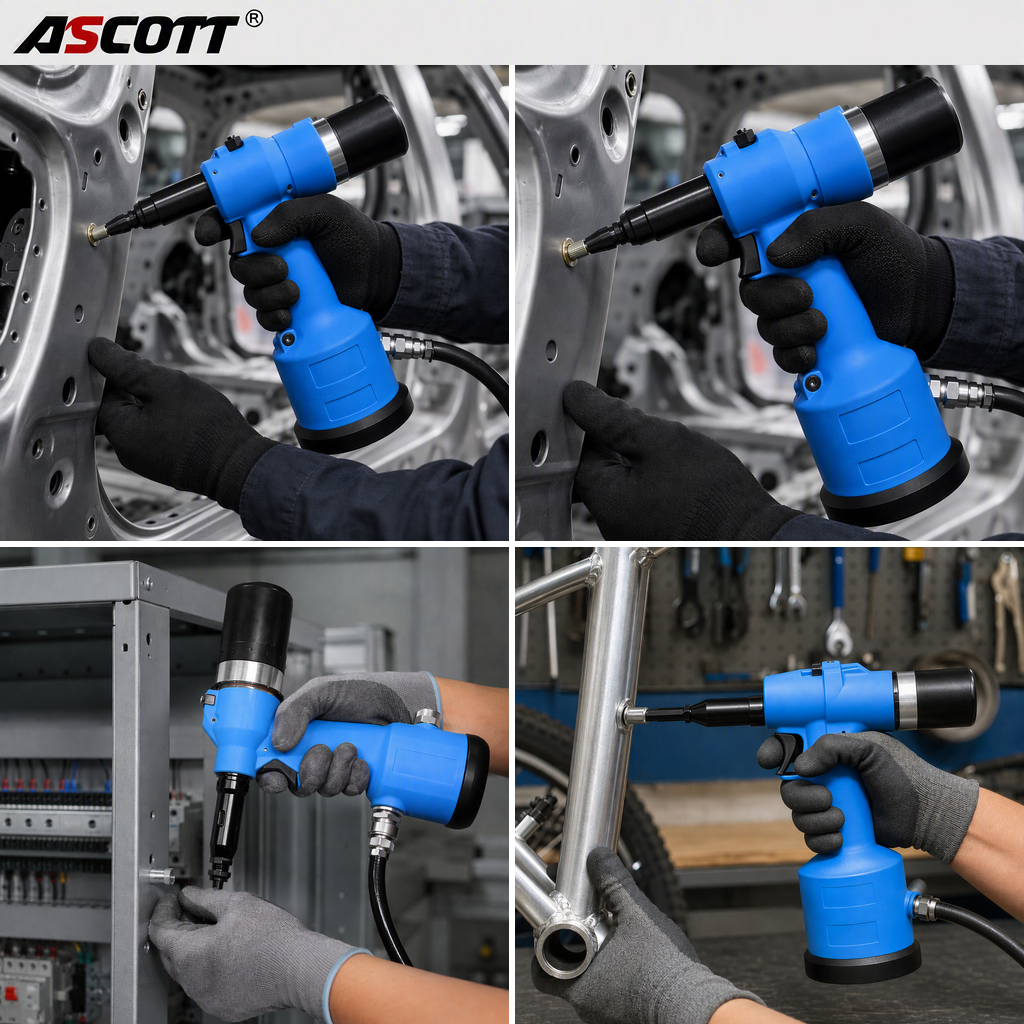

Applicable Scenarios:

1. Auto Bodywork: Processing and repairing car body panels and chassis sheet metal parts

2. Metal Furniture: Production of steel frames and metal table and chair frames

3. Electrical Industry: Sheet metal processing for control cabinets and distribution boxes

4. Others: Mass production of bicycle frames, workbenches, computer cases, and sheet metal enclosures

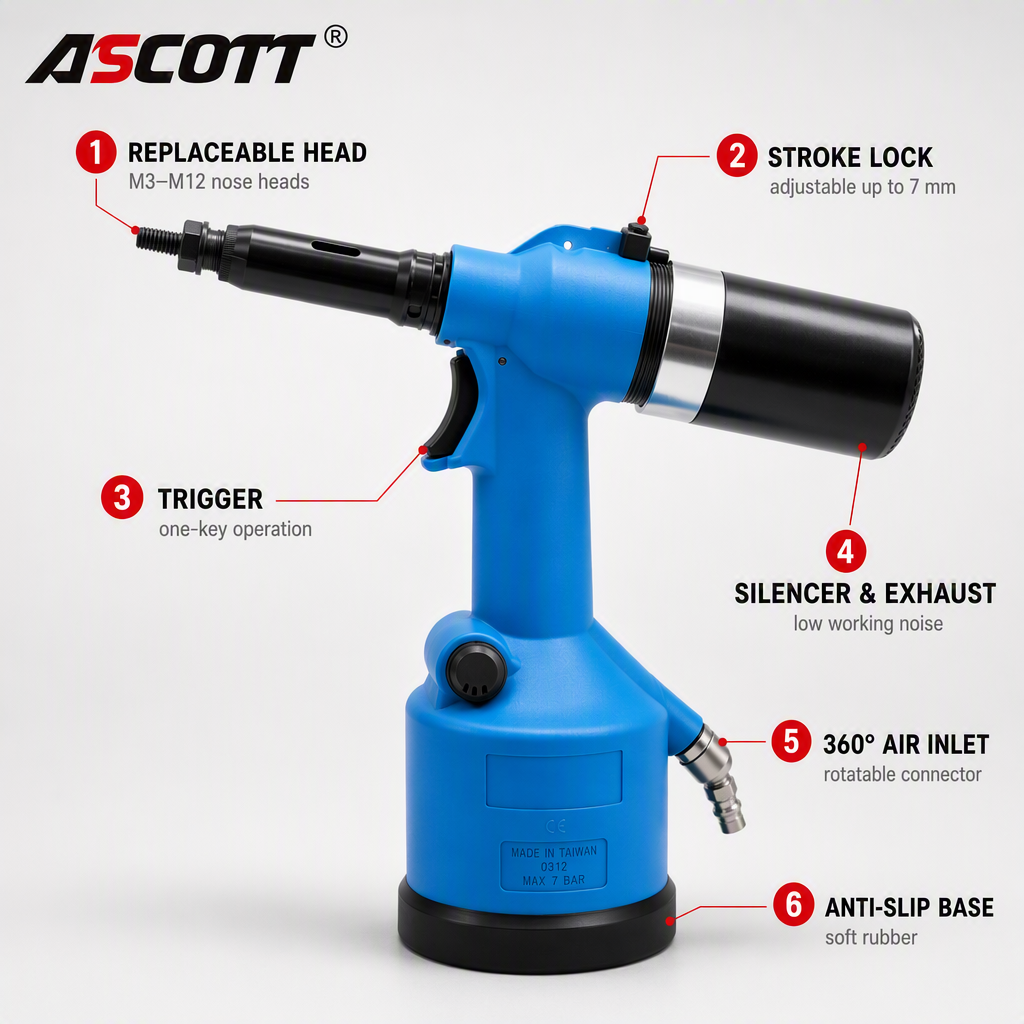

Product Highlights

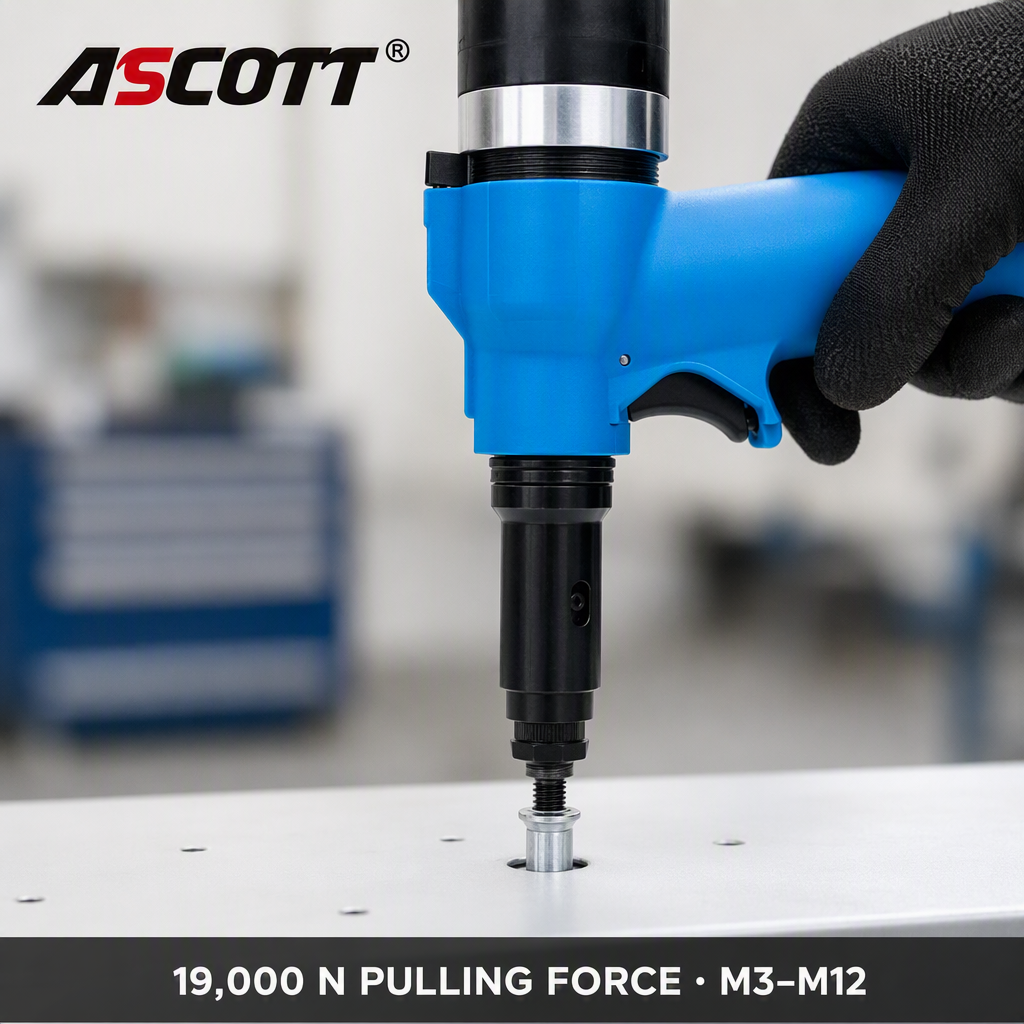

1. Pneumatic boosting with 19,000N of pulling force, easily pulls even thick-walled stainless steel rivet nuts.

2. Fully automatic cycle—just pull the trigger once to complete the entire process, no need to manually retract the screw, highly efficient.

3. Adjustable stroke of 0~7mm, fits different thicknesses of plates and rivet nuts.

4. Interchangeable gun heads, one tool covers the full range of M3~M12 rivet nuts.

5. 360° rotating air inlet, air hose won’t tangle; comes with a built-in silencer for quieter operation.

6. Non-slip rubber base keeps it stable; trigger-controlled with one hand, easy to use.
