ASCOTT DM-666 Automatic Paint Spray Gun Spray Equipment for Atomized Coating of Hardware Wood and Plastic

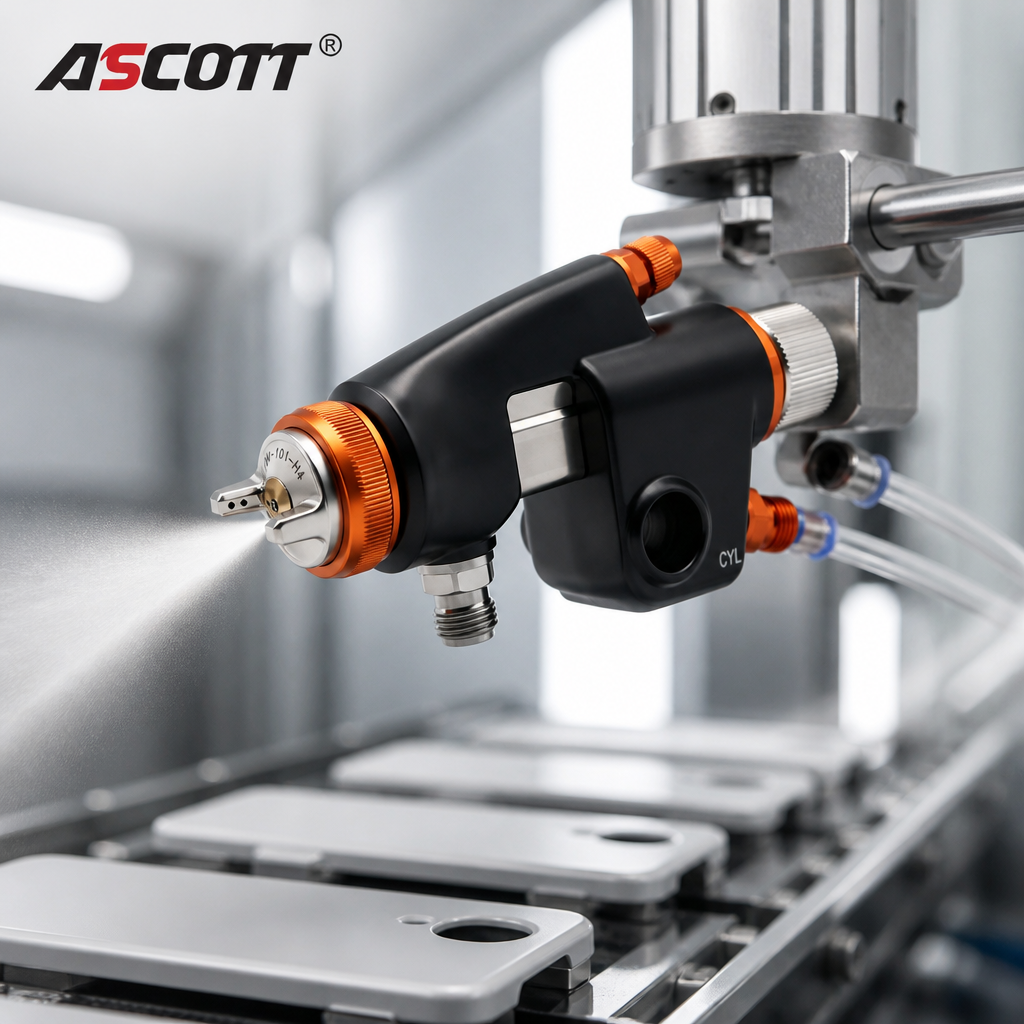

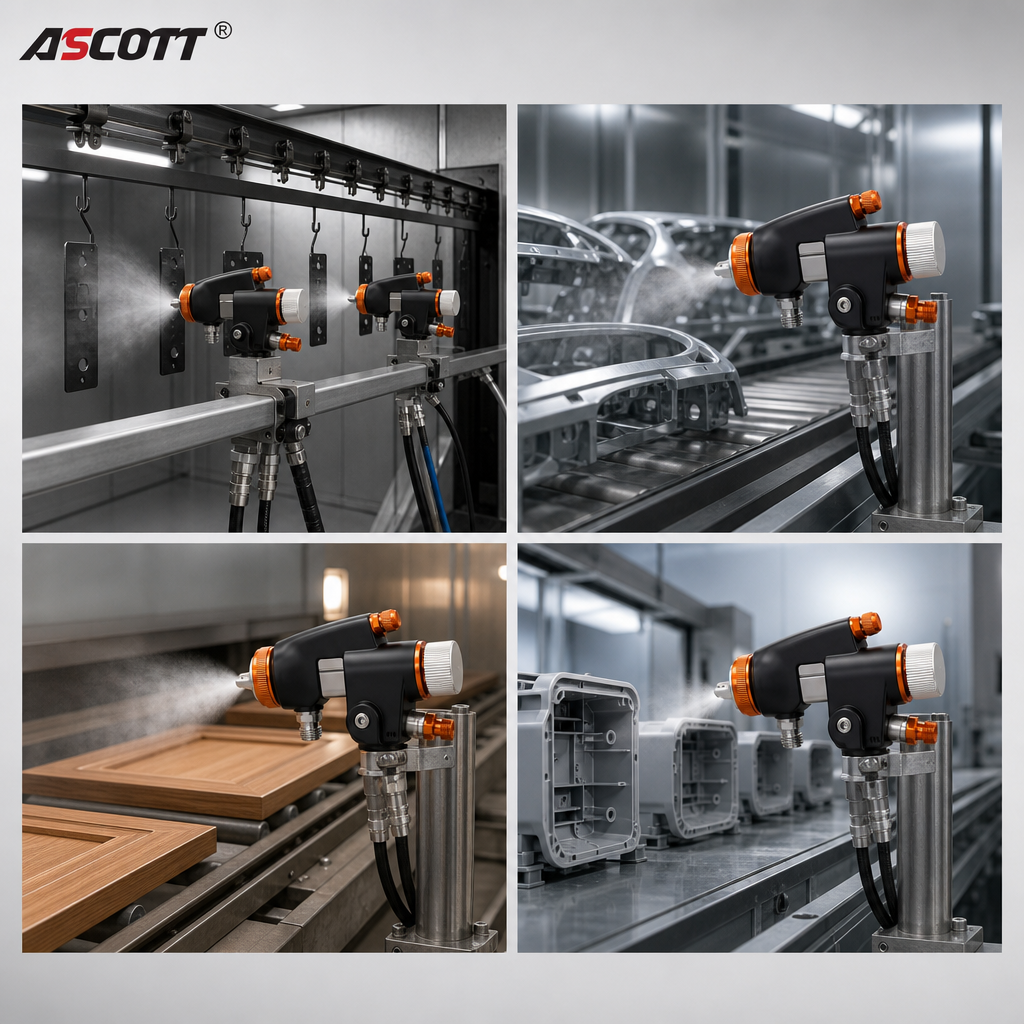

DM-666 industrial assembly line automatic paint spraying can be mounted on a reciprocating sprayer, robot arm, or assembly line frame. Compressed air atomises the paint for spraying, automatically coating metal parts, plastic shells, and wooden furniture.

Product details

1.Model:DM-666

2.Nozzle：0.8-1.8mm

3.Working Pressure：0.24MPa-0.29MPa

4.Air Consumption：190L/Min-270L/Min

5.Width of Pattern：190mm-240mm

6.Compressor:1.5KW

Specific category

Compressor:1.5kw

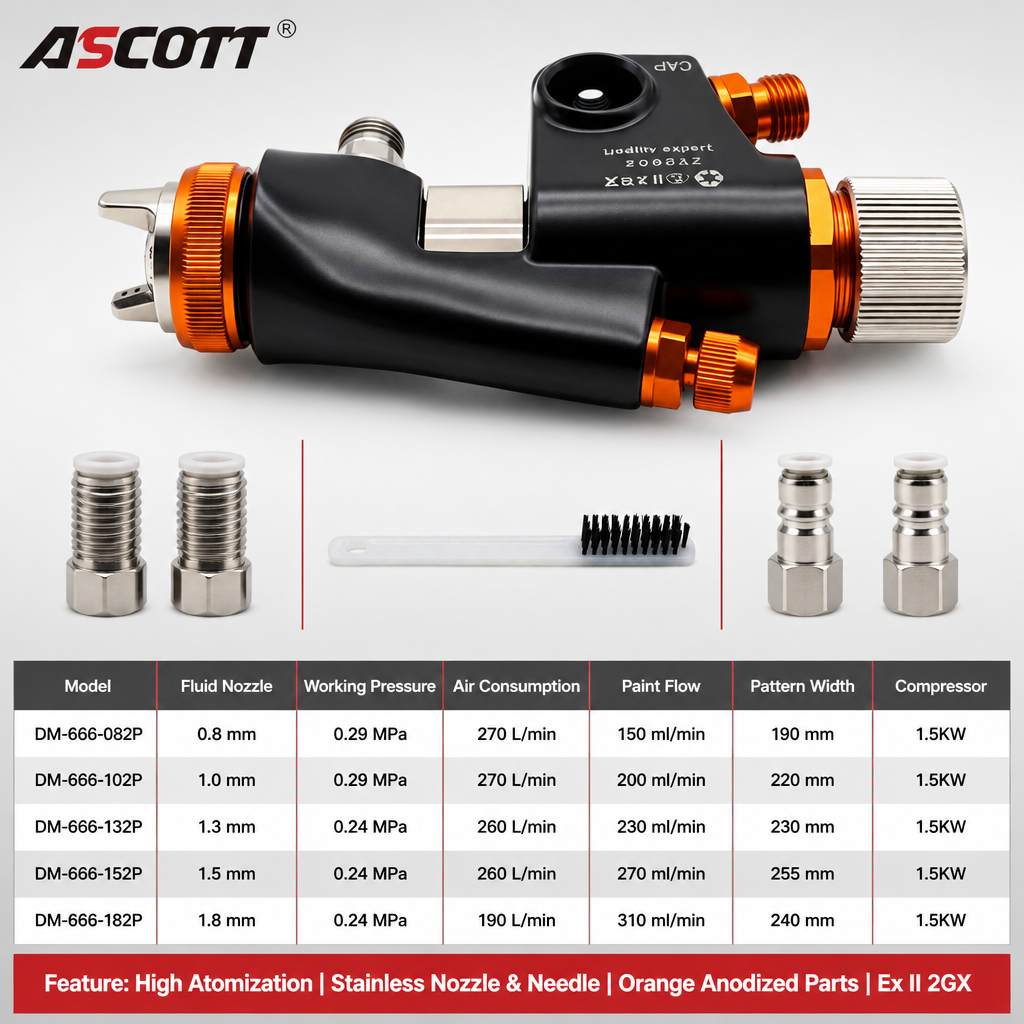

Model        Fluid Nozzle    Working Pressure    Air Consumption    Paint Flow  Pattern Width

DM‑666‑082P    0.8 mm            0.29 MPa               270 L/min             150 ml/min     190 mm

DM‑666‑102P   1.0 mm             0.29 MPa               270 L/min              200 ml/min     220 mm

DM‑666‑132P    1.3 mm            0.24 MPa               260 L/min              230 ml/min    230 mm

DM‑666‑152P    1.5 mm            0.24 MPa               260 L/min              270 ml/min    255 mm

DM‑666‑182P    1.8 mm            0.24 MPa              190 L/min               310 ml/min    240 mm
