ASCOTT WA-101 Automatic Spray Gun Spraying Equipment for Paint Atomisation for Hardware Wooden Products and Plastic Spraying

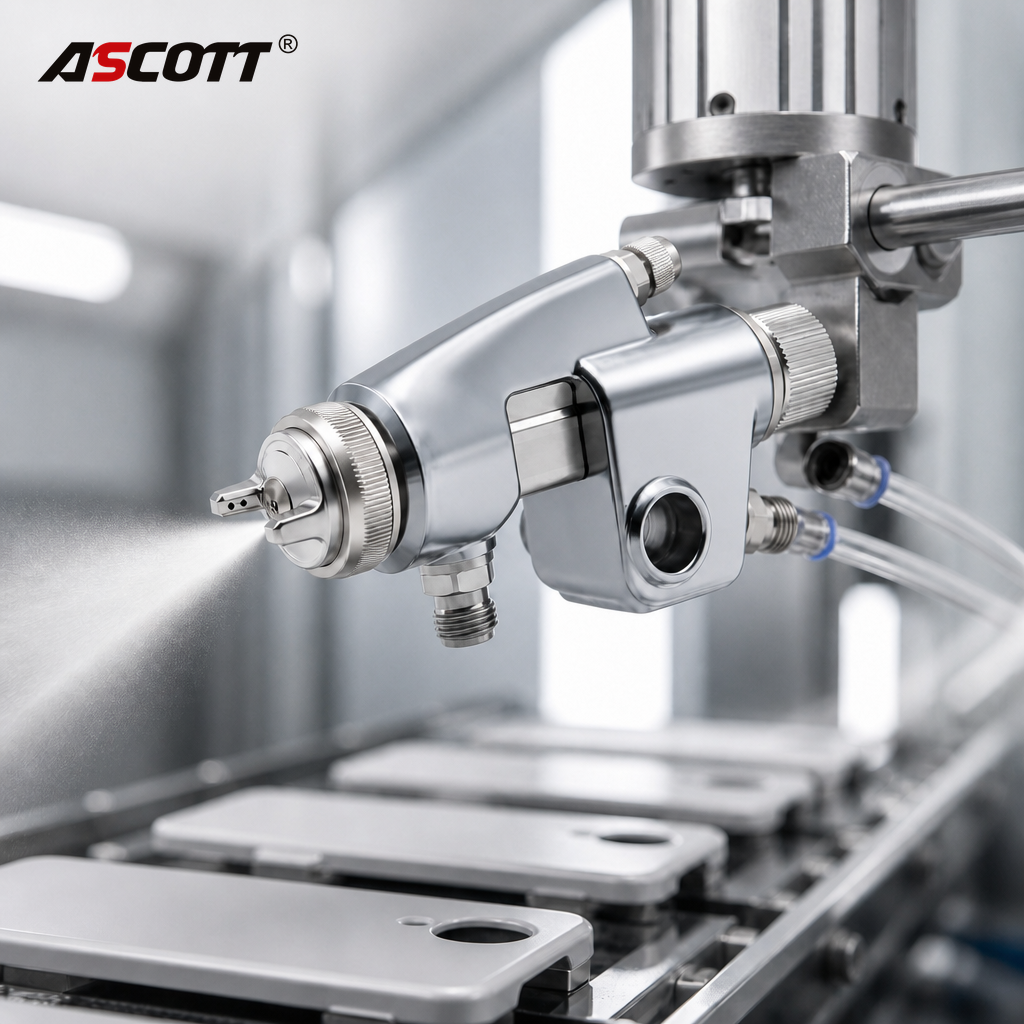

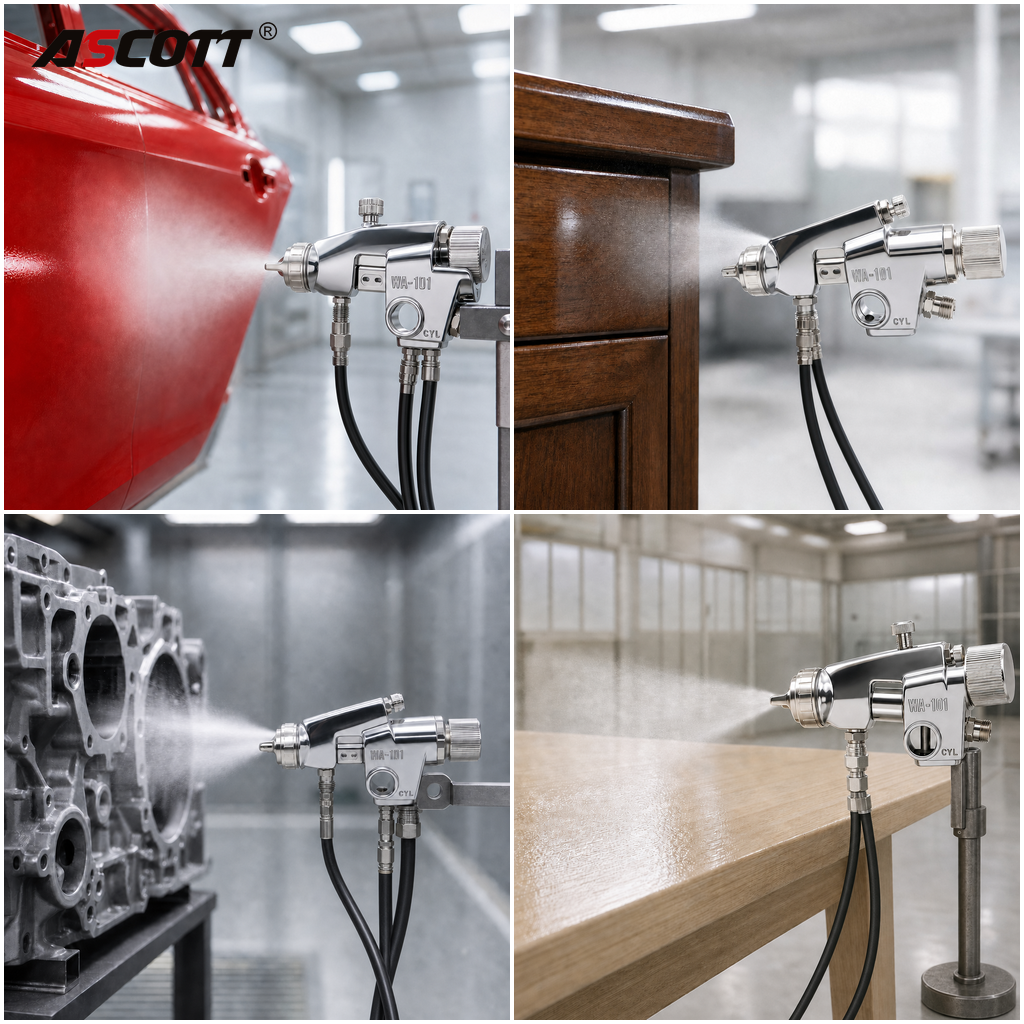

WA-101 industrial assembly line automatic paint spraying can be mounted on a reciprocating sprayer, robot arm, or assembly line frame. Compressed air atomises the paint for spraying, automatically coating metal parts, plastic shells, and wooden furniture.

Product details

1.Model:WA-101

2.Nozzle：0.8-1.8mm

3.Working Pressure：0.24MPa-0.29MPa

4.Air Consumption：190L/Min-270L/Min

5.Width of Pattern：190mm-240mm

6.Compressor:1.5KW

7.Material:Stainless Steel

Specific category

Compressor:1.5KW

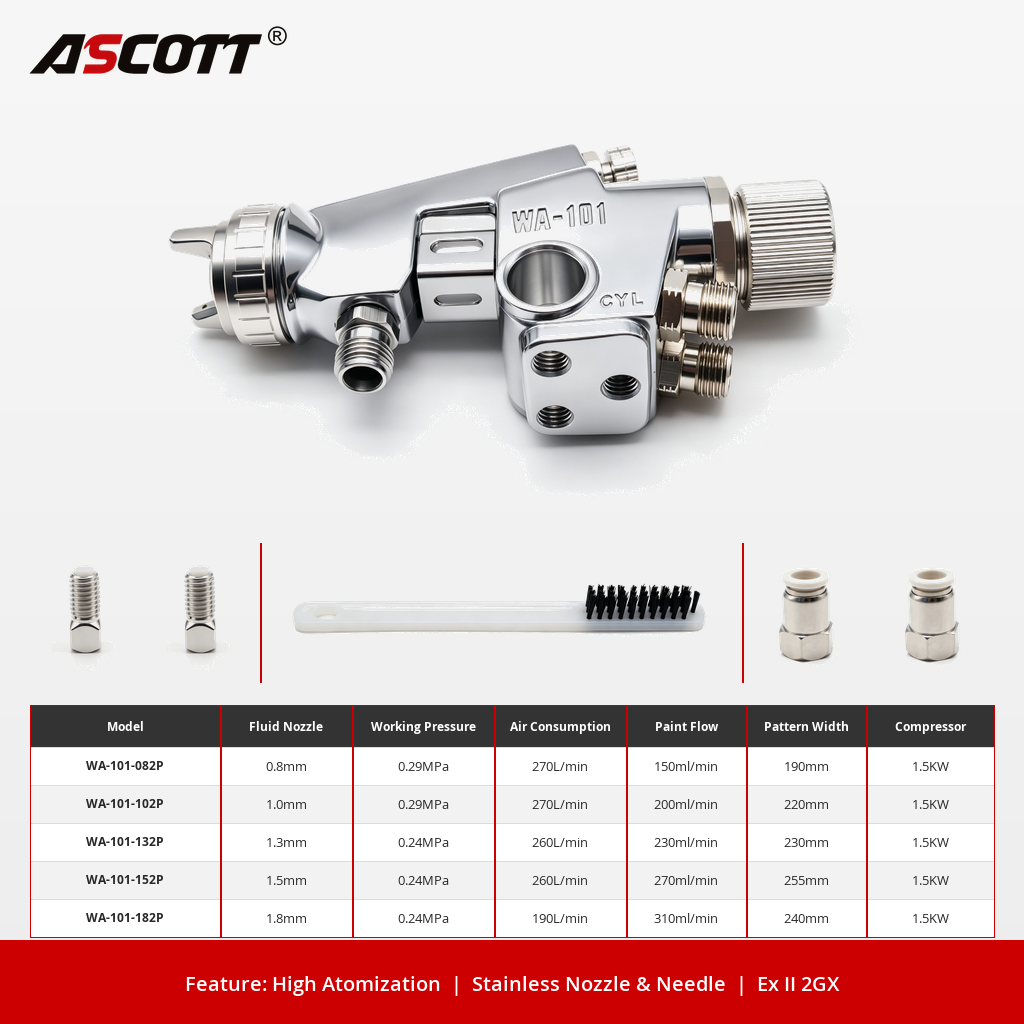

Model          Fluid Nozzle    Working Pressure   Air Consumption   Paint Flow   Pattern Width

WA‑101‑082P   0.8mm         0.29MPa                   270L/min             150ml/min      190mm

WA‑101‑102P   1.0mm         0.29MPa                   270L/min             200ml/min       220mm

WA‑101‑132P    1.3mm        0.24MPa                    260L/min            230ml/min       230mm

WA‑101‑152P    1.5mm        0.24MPa                    260L/min            270ml/min       255mm

WA‑101‑182P    1.8mm        0.24MPa                    190L/min             310ml/min      240mm

If you have any other questions, feel free to ask our customer service, and we will reply to you during working hours. Thank you for your support and understanding
